Franklin Deep Well Series Pumps

Serving Barrie, Oro, Innisfil, Angus, Stroud, Alcona, Borden, Minesing, Shanty Bay, Oro Station and surrounding area businesses and residents for over 15 years.

Non-corrosive thermoplastic construction allows the SWJ to be used in clean water installations without the fear of corrosion. The Self cleaning injector screen provides an additional level of anti clogging for those turbid environments.

FOR 27/7 SERVICE CALL 705-309-0758

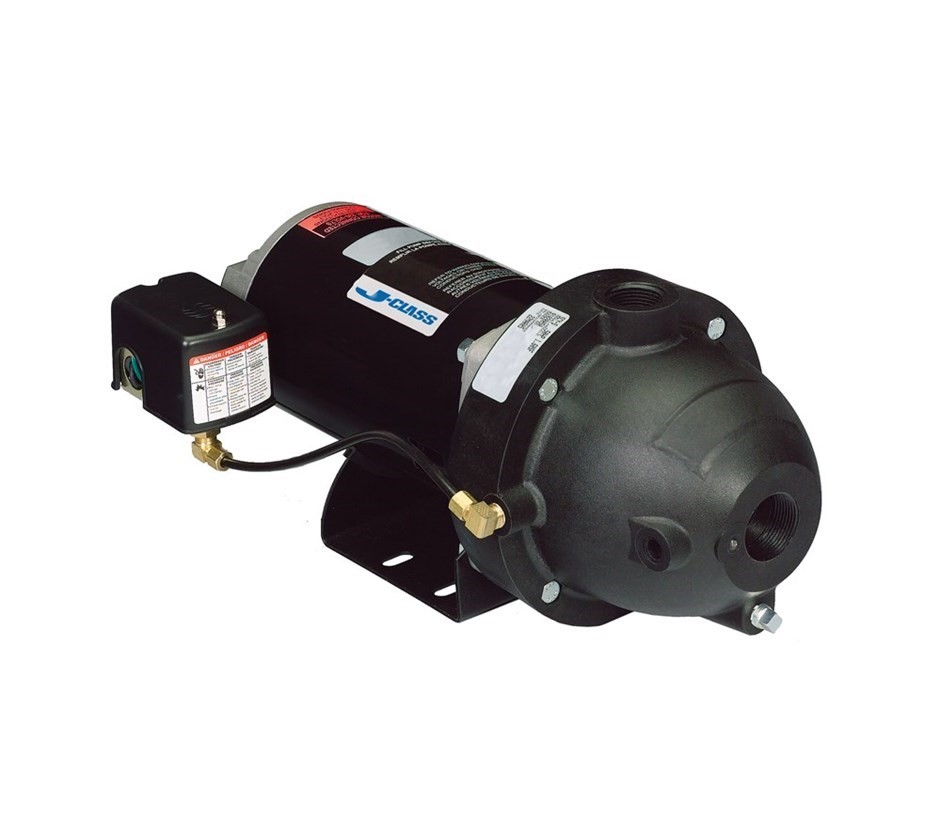

Franklin SWJ Series Deep Well Pump KEY FEATURES

• Non-corrosive thermoplastic construction.
• Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service.
• Self cleaning, anti-clogging injector screen.

• Thermoplastic impeller and diffuser ensure increased hydraulic performance.

• Floating stainless steel eye seal for maximum performance and efficiency.
• Square-flange mounting provides easy serviceability without disturbing the plumbing.
• Built-in drain plug for easy winterizing and servicing.
• Mechanical shaft seal allows positive protection against leaking.
• Order pressure gauge separately.
  Pressure switch is installed and set at 30/50 psi.
• Handles water temperatures up to 120 ˚F/49 ˚C and working pressure up to 75 psi.
• Connections:
  1-1/4" NPT suction
  1" NPT discharge

FOR 27/7 SERVICE CALL 705-309-0758

Built for easy customization, this pump covers a variety of performance needs. With our patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.

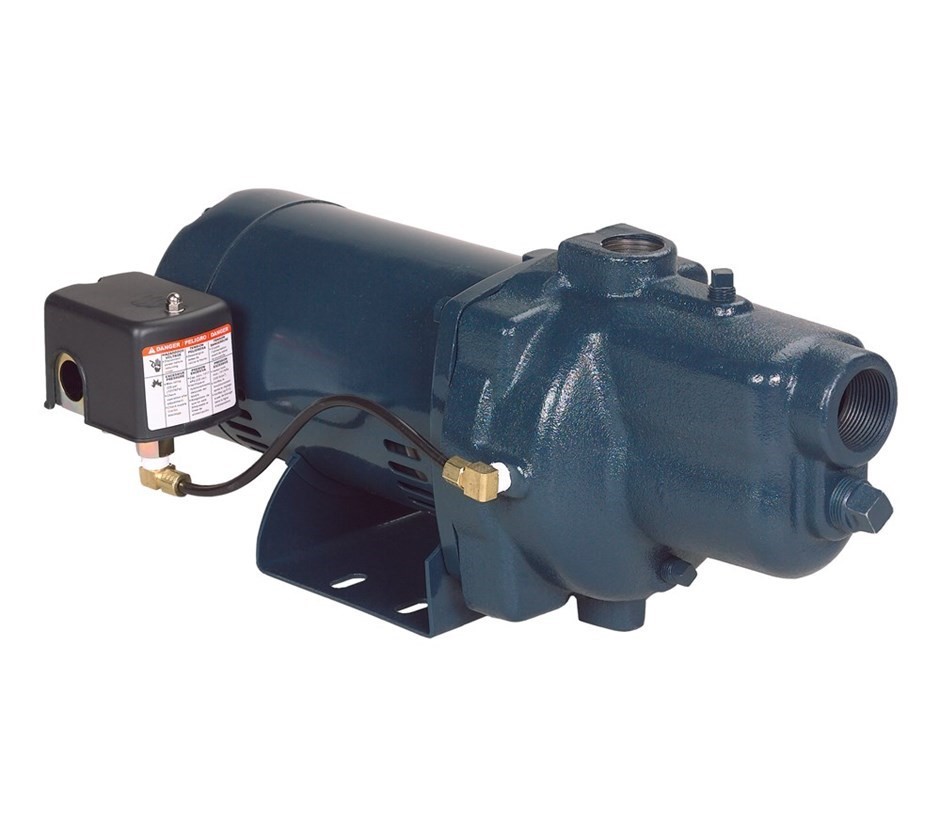

 Franklin VersaJet Deep Well Pump KEY FEATURES

• Impeller with stainless steel insert, diffuser, jet nozzle, and venturi are all molded with Modified PPO.
• Heavy-duty cast iron case ensures optimum durability and long life.
• Floating stainless steel eye seal for maximum performance and efficiency.
• Powered by high quality, industry proven, UL 778 approved indoor/outdoor square flange motors.
• Revolutionary “Quick-Change” jet nozzle replacement system allows easy customization of the pump. Performance can be changed quickly from a high pressure to a high flow set-up without removing the plumbing or opening the case.
• Dual voltage motor can be set to run at either 115 V or 230 V.
• Pressure switch is installed and set at 30/50 PSI.
• Built-in drain plug for easy winterizing and servicing.
• Handles water temperatures up to 120 °F/49 °C and shut-off pressures up to 90 psi.
  1" NPT discharge, 1-1/4" NPT suction.
  UL 778 approved for indoor or outdoor use.

FOR 27/7 SERVICE CALL 705-309-0758

Built for easy customization, this pump covers a variety of performance needs. With our patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.

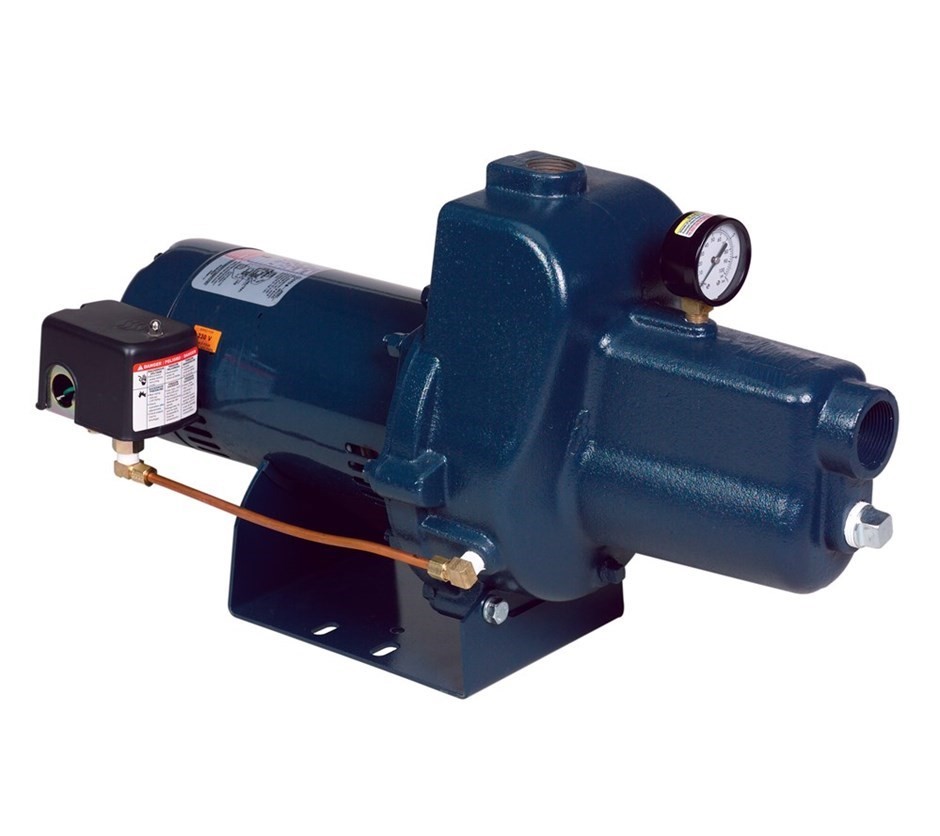

 Franklin VersaJet Pro Well Pump KEY FEATURES

• Impeller with corrosion-resistant stainless steel insert, diffuser, jet nozzle, and venturi are all molded with Modified PPO.
• Heavy-duty cast iron case ensures optimum durability and long life.
• Floating stainless steel eye seal for maximum performance and efficiency.
• Powered by high quality, industry proven, UL 778 approved indoor/outdoor square flange motors.
• Revolutionary “Quick-Change” jet nozzle replacement system allows easy customization of the pump. Performance can be changed quickly from a high pressure to a high flow set-up without removing the plumbing or opening the case.

• Easily adjustable dual voltage motor can be set to run at either 115 V or 230 V.
• Professional grade 30/50 pressure switch with copper hose is adjustable in both the differential and the range.
• Built-in drain plug for easy winterizing and servicing.
• Handles water temperatures up to 120 °F/49 °C and shut-off pressures up to 90 psi.
• 1" NPT discharge, 1-1/4" NPT suction.
• UL 778 certified for indoor or outdoor use.
